Cut And Bleed

Script for Adobe Illustrator
Latest update 10/22/2022, version 1.3

Add bleed and cut layers for irregular shaped artwork output to large-format displays, vinyl labels, vehicle wraps, etc.

  • Specify layer names
  • Specify cut swatch
  • Cut layer fill or stroke
  • Specify bleed amount
Download
FREE 10 DAY TRIAL

Single-user perpetual license

How-to Video

Example result

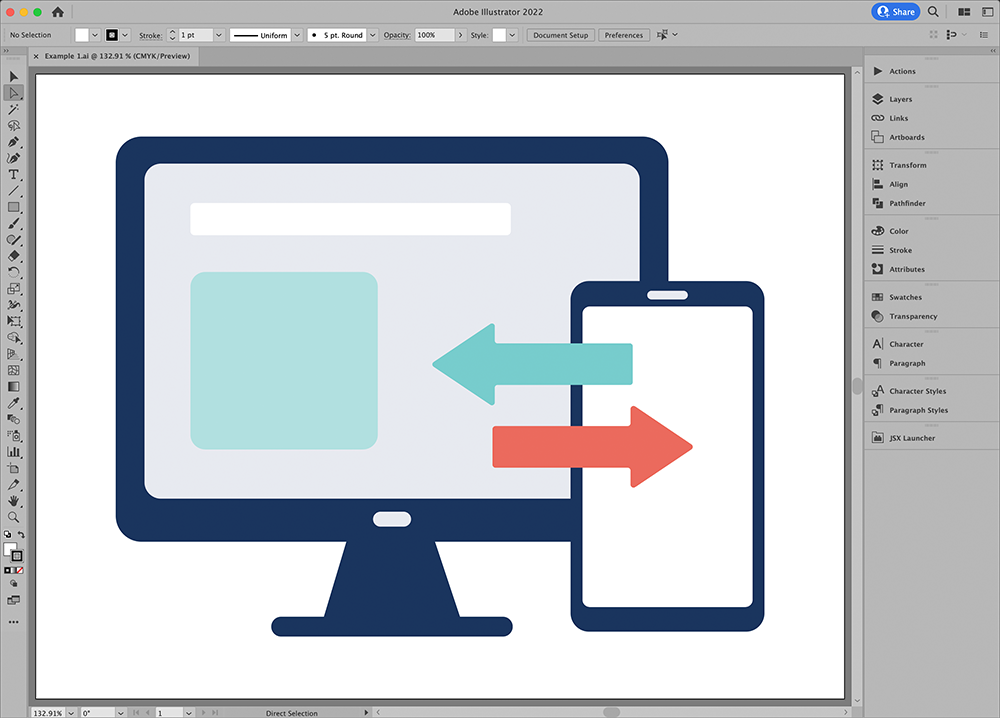

Cut And Bleed before

Original artwork

Cut And Bleed after

Cut and Bleed layers created by script

How to use the script

The interface has three sections: Layer names, Cut layer, and Bleed layer. Set the desired options and click the OK button to begin.

IMPORTANT: understand this script is not a perfect solution. Artwork varies greatly, and the script does not always produce a perfect bleed layer. The script sometimes doesn't get the cut layer right, either. But in every case it does most of the work otherwise required without the script. This is especially true for vinyl labels and similar products with holes in the design, and elements of different colors are adjacent at the trim edge. In these cases the user will have to manually adjust bleed shapes created.

Section 1: Layer names

Cut, Art, and Bleed — enter the desired names for each layer. The document must begin as a single layer (the artwork) that will be renamed to the value entered for Art layer name. The Cut and Bleed layers will be created and named as specified.

Section 2: Cut Layer

Fill — enable and the cut shape created is filled with the swatch specified below.

Stroke — enable and the cut shape created is stroked with the swatch specified below. To the right, enter the stroke width and measurement units.

Swatch name — the name of the swatch assigned to the cut shape fill and/or stroke. If the swatch exists, it is used. If the swatch does not exist, it is created. In either case, the swatch is set to to the values next.

Process — the swatch color type is set to Process Color.

Spot — the swatch color type is set to Spot Color.

Overprint — enable to overprint the cut shape fill and/or stroke.

C M Y K — the swatch color build values, each 0 to 100 percent.

Section 3: Bleed layer

Bleed amount — the amount to increase artwork edges to create bleed elements.

Bleed outer edges only — when disabled, all elements are duplicated and offset path is applied to increase element size for bleed. When enabled, the script analyzes the artwork and only includes elements that reach the overall bounding box of the artwork, which the script considers the trim edge. The result is that interior elements are not duplicated, only those reaching the outer perimeter of the design.

In most cases, though not all, the choice to use depends on the type of product. Vinyl labels and vehicle graphics typically have holes in the design, through which the underlying surface shows. These areas also need bleed the same the outer perimeter needs bleed. On the other hand, often sign products only cut the outer perimeter and leave apparent holes in the design as uncolored areas. In other words, the material color, most often white, but sometimes metallic or other specialty stocks. Set this option based on the needs of the project.

Download
FREE 10 DAY TRIAL

Single-user perpetual license

Change log: cut-and-bleed.txt

For help installing scripts, see How to Install and Use Scripts in Adobe Creative Cloud Applications.

Also available for hire to program custom solutions. Contact William for more information.

IMPORTANT: by downloading any of the scripts on this page you agree that the software is provided without any warranty, express or implied. USE AT YOUR OWN RISK. Always make backups of important data.
