Color Layer Items InDesign

Script for Adobe InDesign

Change the color or overprint of all elements on a selected layer.

  • Change fill or stroke color, or leave either unchanged
  • Set overprint on or off, or leave unchanged
  • Adapt open source to customize or create other scripts

For the Illustrator version of this script, see Color Layer Items

Also see related script Change Overprint InDesign

Download
Color Layer Items InDesign
Many scripts are free to download thanks to the support of users. Help me keep developing new scripts by supporting my work. Click the PayPal button to contribute any amount. Thank you.

How-to Video

How to use the script

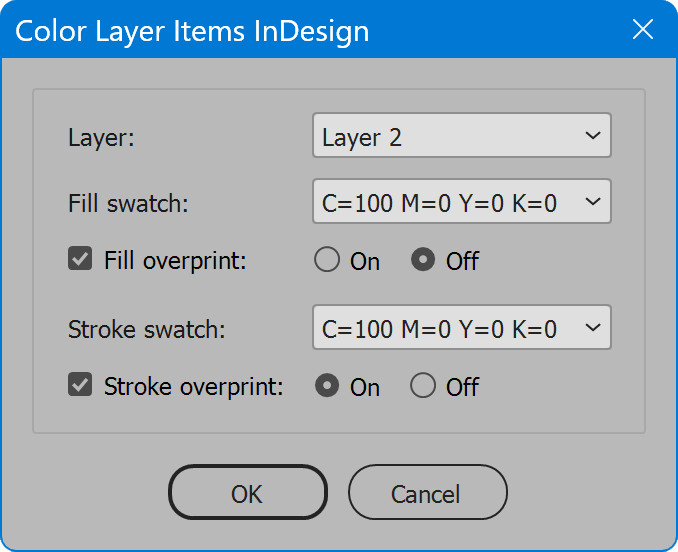

The interface is a single section with all options. The only option required is the choice of layer. All other choices are optional. Click the OK button, and all items on the selected layer are modified as directed.

Layer — the layer to color. All items on the layer, on all pages, are affected.

Fill swatch — the swatch to assign to the fill of any item that currently has a fill color. Any item that has no fill remains unchanged. If a swatch is not selected in the drop-down list, the fill of all items remains unchanged.

Fill overprint — enable and select On or Off to change the fill overprint of all items on the layer. Disable and the fill overprint of all items remains unchanged.

Stroke swatch — the swatch to assign to the stroke of any item that currently has a stroke. Any item that has no stroke remains unchanged. If a swatch is not selected in the drop-down list, the stroke of all items remains unchanged.

Stroke overprint — enable and select On or Off to change the stroke overprint of all items on the layer. Disable and the stroke overprint of all items remains unchanged.

Regarding overprint

When told to overprint fill or stroke, and the item color is zero percent CMYK, the script does not enable overprint, and when done, alerts the user “Items with no color (white) were not set to overprint.” This behavior is limited to changing overprint, meaning, when items already set to overprint are changed to no color (white), but overprint is not changed, there is no warning. In this case, InDesign disables the overprinting.

Source code

(download button below)

/*

Color Layer Items InDesign
Copyright 2022 William Campbell
All Rights Reserved
https://www.marspremedia.com/contact

Permission to use, copy, modify, and/or distribute this software
for any purpose with or without fee is hereby granted.

THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR
ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN
ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF
OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

*/

(function () {

    var title = "Color Layer Items InDesign";

    if (!/indesign/i.test(app.name)) {
        alert("Script for InDesign", title, false);
        return;
    }

    // Script variables.
    var doc;
    var error;
    var layerNames;
    var swatchFill;
    var swatchNames;
    var swatchNone;
    var swatchStroke;
    var warningWhite;

    // Reusable UI variables.
    var g; // group
    var gc1; // group (column)
    var gc2; // group (column)
    var p; // panel
    var w; // window

    // Permanent UI variables.
    var btnCancel;
    var btnOk;
    var cbOPFill;
    var cbOPStroke;
    var grpOPFill;
    var grpOPStroke;
    var listLayers;
    var listSwatchesFill;
    var listSwatchesStroke;
    var rbOPFillOff;
    var rbOPFillOn;
    var rbOPStrokeOff;
    var rbOPStrokeOn;

    // SETUP

    // Script requires open document.
    if (!app.documents.length) {
        alert("Open a document", title, false);
        return;
    }
    doc = app.activeDocument;
    // Get layer names.
    layerNames = doc.layers.everyItem().name;
    // Get swatch names.
    swatchNames = doc.swatches.everyItem().name;
    swatchNone = doc.swatches[0];

    // CREATE USER INTERFACE

    w = new Window("dialog", title);
    w.alignChildren = "fill";
    // Panel.
    p = w.add("panel");
    // Group of 2 columns.
    g = p.add("group");
    // Groups, columns 1 and 2.
    gc1 = g.add("group");
    gc1.orientation = "column";
    gc1.alignChildren = "left";
    gc2 = g.add("group");
    gc2.orientation = "column";
    gc2.alignChildren = "left";
    // Rows.
    gc1.add("statictext", undefined, "Layer:").preferredSize = [-1, 23];
    listLayers = gc2.add("dropdownlist", undefined, layerNames);
    listLayers.preferredSize = [150, 23];
    gc1.add("statictext", undefined, "Fill swatch:").preferredSize = [-1, 23];
    listSwatchesFill = gc2.add("dropdownlist", undefined, swatchNames);
    listSwatchesFill.preferredSize = [150, 23];
    cbOPFill = gc1.add("checkbox", undefined, "Fill overprint:");
    grpOPFill = gc2.add("group");
    rbOPFillOn = grpOPFill.add("radiobutton", undefined, "On");
    rbOPFillOff = grpOPFill.add("radiobutton", undefined, "Off");
    gc1.add("statictext", undefined, "Stroke swatch:").preferredSize = [-1, 23];
    listSwatchesStroke = gc2.add("dropdownlist", undefined, swatchNames);
    listSwatchesStroke.preferredSize = [150, 23];
    cbOPStroke = gc1.add("checkbox", undefined, "Stroke overprint:");
    grpOPStroke = gc2.add("group");
    rbOPStrokeOn = grpOPStroke.add("radiobutton", undefined, "On");
    rbOPStrokeOff = grpOPStroke.add("radiobutton", undefined, "Off");
    // Action Buttons.
    g = w.add("group");
    g.alignment = "center";
    btnOk = g.add("button", undefined, "OK");
    btnCancel = g.add("button", undefined, "Cancel");
    // Panel Copyright.
    p = w.add("panel");
    p.add("statictext", undefined, "Copyright 2022 William Campbell");

    // SET UI VALUES

    configureUi();

    // UI ELEMENT EVENT HANDLERS

    cbOPFill.onClick = configureUi;
    cbOPStroke.onClick = configureUi;

    btnOk.onClick = function () {
        if (!listLayers.selection) {
            alert("Select a layer", " ", false);
            return;
        }
        w.close(1);
    };

    btnCancel.onClick = function () {
        w.close(0);
    };

    // DISPLAY THE DIALOG

    if (w.show() == 1) {
        try {
            app.doScript(process, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, title);
            if (warningWhite) {
                alert("Items with no color (white) were not set to overprint");
            }
        } catch (e) {
            error = error || e;
            alert("An error has occurred.\nLine " + error.line + ": " + error.message, title, true);
        }
    }

    //====================================================================
    //               END PROGRAM EXECUTION, BEGIN FUNCTIONS
    //====================================================================

    function colorItems(items) {
        var i;
        var item;
        var text;
        var vc = function (c) {
            // Validate object has property 'space'.
            return "space" in c;
        };
        for (i = 0; i < items.length; i++) {
            item = items[i];
            if (item.getElements()[0].constructor.name == "Group") {
                // Recurse (call self)
                colorItems(item.pageItems);
            } else {
                // Not a group
                if (item.getElements()[0].constructor.name == "TextFrame") {
                    // TEXT
                    text = item.texts[0];
                    // Fill
                    if (text.fillColor != swatchNone) {
                        if (swatchFill) {
                            text.properties = {
                                fillColor: swatchFill,
                                fillTint: 100
                            };
                        }
                        // Fill overprint
                        if (cbOPFill.value && vc(text.fillColor)) {
                            if (rbOPFillOn.value && notWhite(text.fillColor, true)) {
                                text.overprintFill = true;
                            } else if (rbOPFillOff.value && notWhite(text.fillColor)) {
                                text.overprintFill = false;
                            }
                        }
                    }
                    // Stroke
                    if (text.strokeColor != swatchNone) {
                        if (swatchStroke) {
                            text.properties = {
                                strokeColor: swatchStroke,
                                strokeTint: 100
                            };
                        }
                        // Stroke overprint
                        if (cbOPStroke.value && vc(text.strokeColor)) {
                            if (rbOPStrokeOn.value && notWhite(text.strokeColor, true)) {
                                text.overprintStroke = true;
                            } else if (rbOPStrokeOff.value && notWhite(text.strokeColor)) {
                                text.overprintStroke = false;
                            }
                        }
                    }
                }
                // ALL OTHER, NOT TEXT
                // Fill
                if (item.fillColor != swatchNone) {
                    if (swatchFill) {
                        item.properties = {
                            fillColor: swatchFill,
                            fillTint: 100
                        };
                    }
                    // Fill overprint
                    if (cbOPFill.value && vc(item.fillColor)) {
                        if (rbOPFillOn.value && notWhite(item.fillColor, true)) {
                            item.overprintFill = true;
                        } else if (rbOPFillOff.value && notWhite(item.fillColor)) {
                            item.overprintFill = false;
                        }
                    }
                }
                // Stroke
                if (item.strokeColor != swatchNone) {
                    if (swatchStroke) {
                        item.properties = {
                            strokeColor: swatchStroke,
                            strokeTint: 100
                        };
                    }
                    // Stroke overprint
                    if (cbOPStroke.value && vc(item.strokeColor)) {
                        if (rbOPStrokeOn.value && notWhite(item.strokeColor, true)) {
                            item.overprintStroke = true;
                        } else if (rbOPStrokeOff.value && notWhite(item.strokeColor)) {
                            item.overprintStroke = false;
                        }
                    }
                }
            }
        }
    }

    function configureUi() {
        if (!(rbOPFillOn.value || rbOPFillOff.value)) {
            rbOPFillOn.value = true;
        }
        if (!(rbOPStrokeOn.value || rbOPStrokeOff.value)) {
            rbOPStrokeOn.value = true;
        }
        grpOPFill.enabled = cbOPFill.value;
        grpOPStroke.enabled = cbOPStroke.value;
    }

    function notWhite(color, warn) {
        if (
            "colorValue" in color && // MIXEDINK has no property 'colorValue'
            (
                color.colorValue.toString() == "0,0,0,0" || // CMYK
                color.colorValue.toString() == "255,255,255" || // RGB
                color.colorValue.toString() == "100,0,0" // Lab
            )
        ) {
            warningWhite |= warn;
            return false;
        }
        return true;
    }

    function process() {
        var layer;
        try {
            layer = doc.layers.itemByName(listLayers.selection.text);
            if (listSwatchesFill.selection) {
                swatchFill = doc.swatches.itemByName(listSwatchesFill.selection.text);
            }
            if (listSwatchesStroke.selection) {
                swatchStroke = doc.swatches.itemByName(listSwatchesStroke.selection.text);
            }
            colorItems(layer.pageItems);
        } catch (e) {
            error = e;
            throw e;
        }
    }

})();
